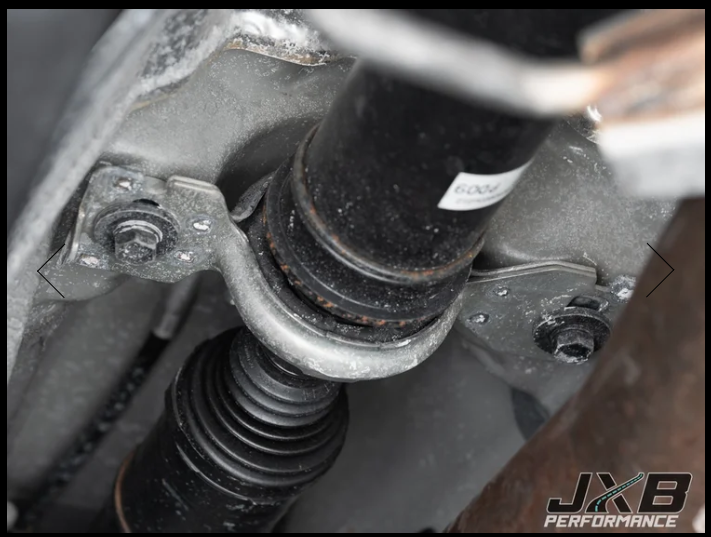

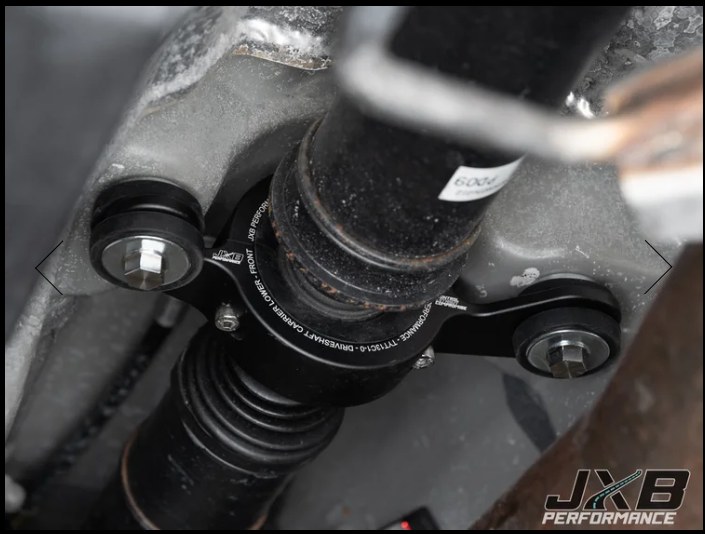

The video below shows the difference between OEM and JXB carriers. The driveshaft is not well supported by the OEM carrier, allowing the bearing to sag over time.

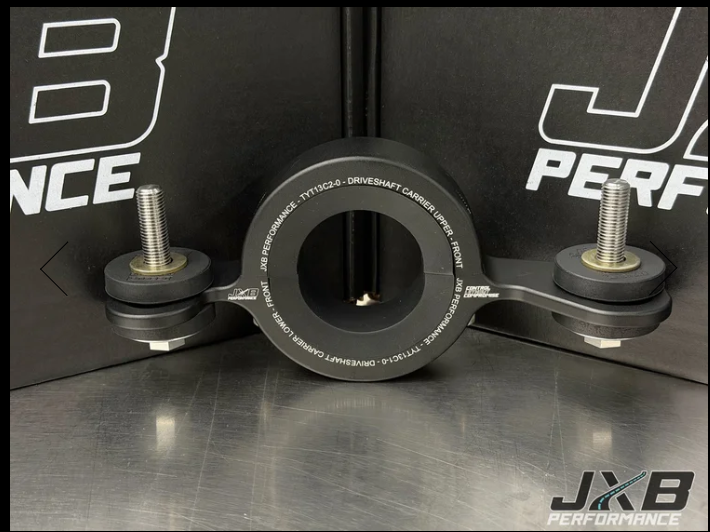

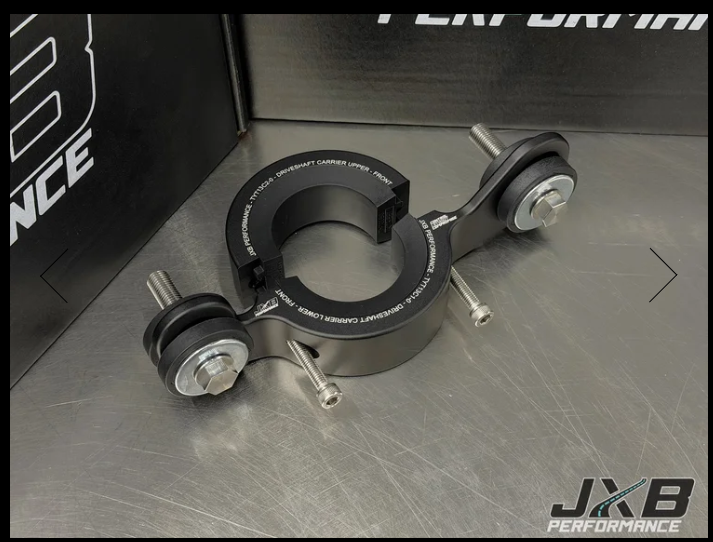

Installation doesn’t require removal of the driveshaft. The 2-part design clamps around the OEM bearing. The old carrier must be removed, so a cutting tool is required.
The basic steps are:
-
Cut off OEM carrier and remove rubber support material with razorblade, leaving base layer of rubber intact on the bearing
-
Clamp new carrier around OEM bearing
Fitment:
-
GR Corolla (E210) 2023+
-
Also fits:
-
GR Yaris (XP210) 2020+
-
Corolla Cross & Frontlander (E210) 2022+
-
3rd/4th gen RAV4 (XA30/XA40) 2005-2018
-

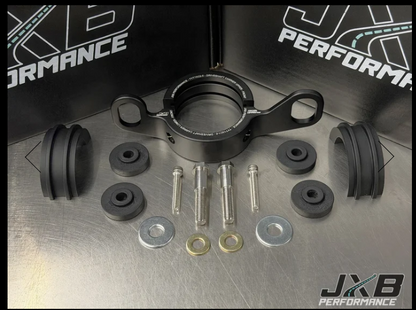

- OFFERED WITH STREET OR TRACK BUSHINGS OR YOU CAN GET BOTH!
Street and Track refer to the durometer (stiffness) of the bushings. Track are roughly twice the durometer of the street bushings. Both track and street are many times stiffer than stock and will hold up to whatever abuse are thrown at them, but the street bushings are better at soaking up drivetrain noise and vibration. Usually both street and track are completely silent and vibration-free, but in cases where there is an underlying drivetrain issue causing the driveshaft to vibrate badly, the track bushings may not be able to soak it all up, where the street bushings can.
We generally recommend street bushings for any car that's not purpose-built for track or overland use, since the street bushings have a much lower chance of transmitting drivetrain NVH to the cabin at high speeds or under heavy throttle loads.
If you’re not sure which to go with, the “Give me Both!” option will give you a full set of each of the street and track bushings. You can use all street, all track, or even mix and match them to find the perfect balance of performance and NVH-absorption.
