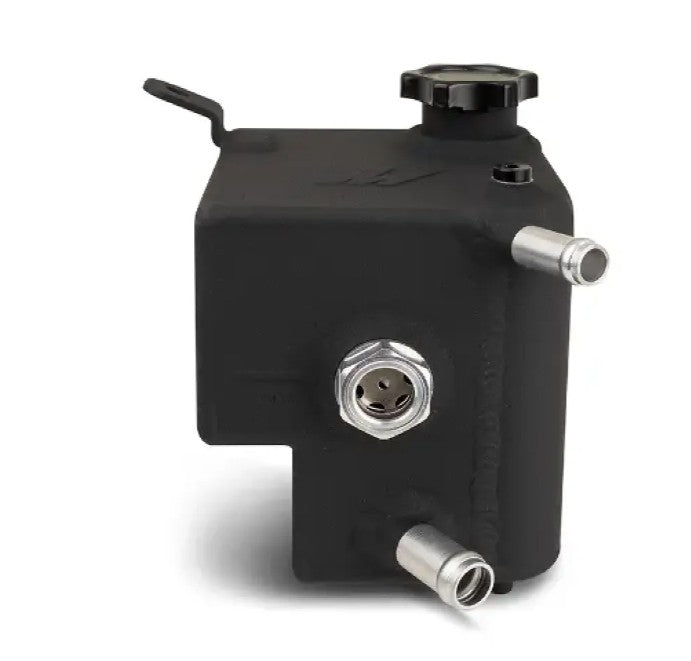

Mishimoto Coolant Expansion Tank Toyota GR Corolla 2023-2024 - Black

Introducing the Mishimoto Coolant Expansion Tank for the 2023+ Toyota GR Corolla. This direct-fit solution boasts all-aluminum construction that won't yellow, crack, or leak with repeated heat cycles like the stock plastic tank will. Internal baffles prevent air entry during aggressive driving, while a 40 percent increase in coolant capacity improves heat dissipation. The easy-access bleed port simplifies air bleeding, saving you time and frustration. A high-visibility sight glass and stamped cold-fill line allow quick coolant level checks. Choose from micro-wrinkle red or black finishes to match your style. Backed by the Mishimoto Lifetime Warranty, this expansion tank combines performance and aesthetics for a confident driving experience as long as you own your GR Corolla.

Purchase Includes:

• (1) Expansion Tank
• (1) Overflow hose
• (1) Mishimoto Expansion Tank Cap
• (2) Worm Gear Clamps
• Mishimoto Lifetime Warranty

Installation Guide



Specifications:

• Label: Black
• Fluid Capacity (gal): 0.41
• Height (in): 7.43
• Material: Aluminum
• Width (in): 6.13
• Vehicle Specifications:
  • Chassis Codes: GZEA14
  • Engine Codes: G16E-GTS

Fitment:

• Toyota GR Corolla Core 1.3L I3 2023-2024
• Toyota GR Corolla Morizo Edition 1.3L I3 2023
• Toyota GR Corolla Circuit Edition 1.3L I3 2023-2024

Note:

• Refer to OEM bleed procedure
