SPL Rear Lower Camber Arms Scion | Subaru | Toyota 2008+

SPL Rear Lower Camber Arms Scion | Subaru | Toyota 2008+

Regular price $692.10 USD
Regular price $769.00 USD Sale price $692.10 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

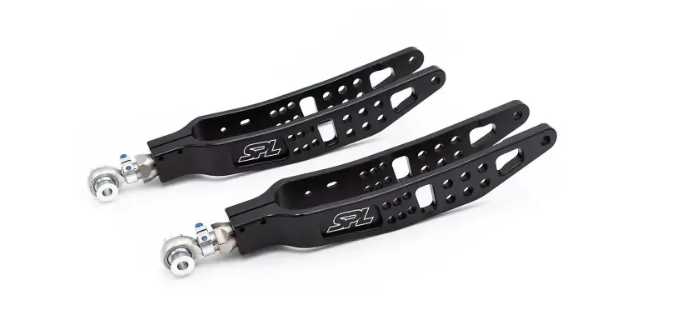

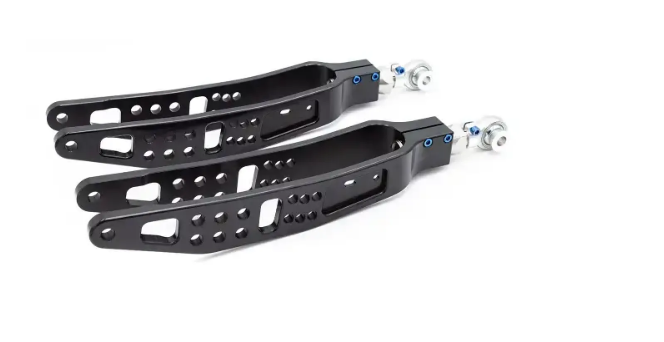

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver.

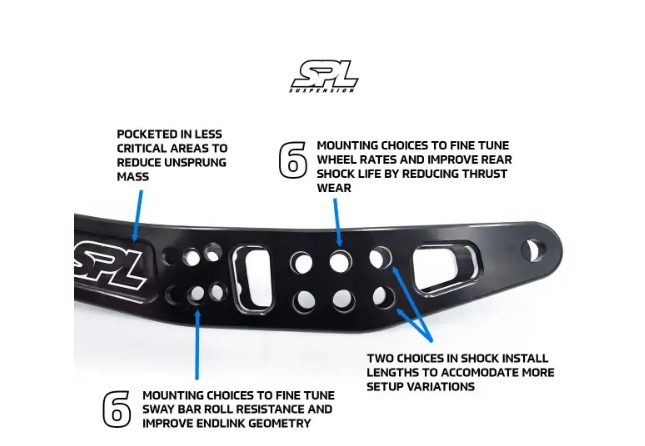

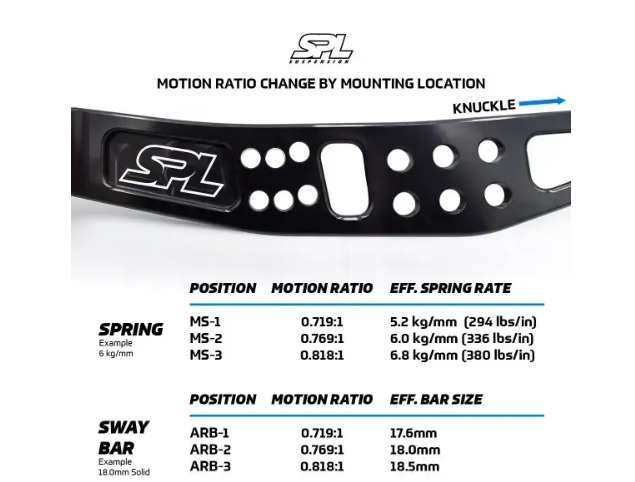

Adjustable Motion Ratios: The three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting).

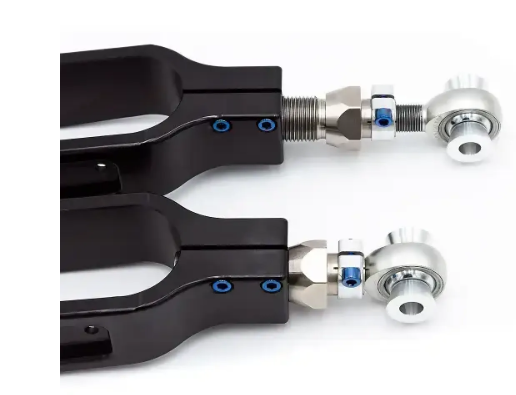

Unrivaled Adjustability Range: The large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market.

Easy, On-Car Adjustments: Instead of jam nuts, the SPL rear lower arms feature 360 clamps and an electroless nickel plated double adjuster to make setting the camber angle significantly easier. Simply loosen the 1/4"-20 titanium hardware and turn the double adjuster to achieve the desired amount of camber. Lastly, tighten the 1/4"-20 titanium hardware to lock it in. No more wandering alignment specs as you try to hold one end and tighten the other.

Noise, Vibration, and Harshness (NVH): The rear lower control arm is not a significant source of percieved NVH. In fact, it's more and more common for OEMs to use sphericals in the knuckle bushing where the lower control arm mounts. The spherical rod end eliminates torsional bushing bind, resulting in a small improvement to ride quality, but may transmit a small amount of additional road noise over textured/grooved pavement.

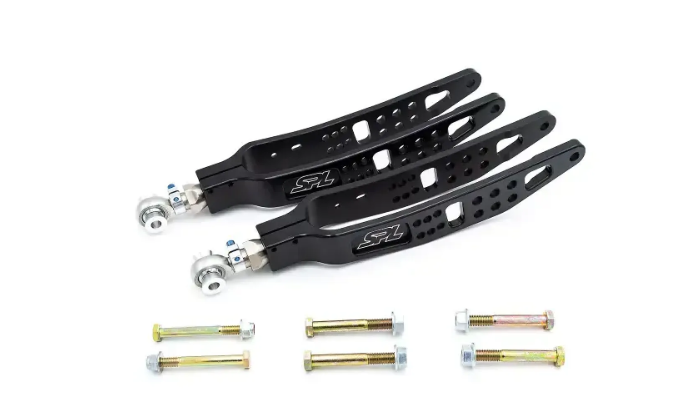

Sold as a pair. One pair per vehicle.

Replaces OEM Part Numbers: This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.(Toyota-SU003-08417,SU003-04490),(Subaru-20250-AL011,20250-FG042,20250-AJ040,20250-CA010)

Installation Guide

Features:
  • Large Range of Camber and Motion Ratio Adjustability
  • Lightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM)
  • Eliminates Camber Loss to Bushing Deflection
  • Improves Suspension Response and Driving Feel
  • Easier, On-Car Adjustment + No Jam Nuts
  • Self-Cleaning, US Made, PTFE-Lined FK Bearings


Specifications:
  • 6061-T6 Aluminum Arms (Anodized Black)
  • 6061-T6 Aluminum Spacers and 360 Clamps
  • 4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)
  • Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)


Fitment:
  • Toyota GR86 (ZN8) 2021+
  • Toyota GT86/Scion FR-S (ZN6) 2013-2021
  • Subaru BRZ (ZC6/ZD8) 2013+
  • Subaru WRX/STI (GR/VA) 2008-2021
  • Subaru WRX (VB 6MT Only) 2022+
  • Subaru Forester 2009-2017
